Abdomen/Pelvis CT Anatomy , Portal Venous Phase ,Axial

Upper Part

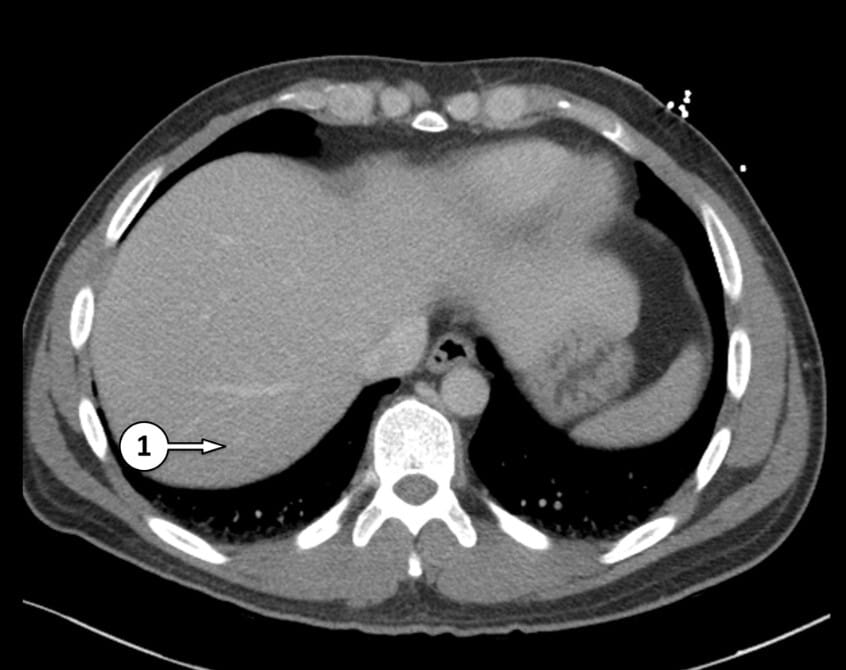

1. segment VII of the liver

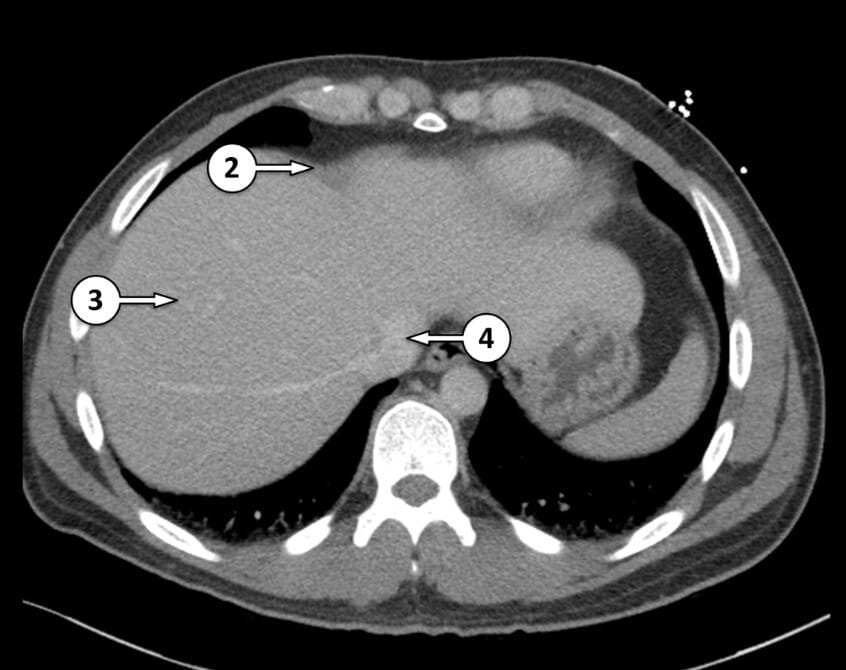

2. right hemidiaphragm

3. segment VIII of the liver

4. inferior vena cava

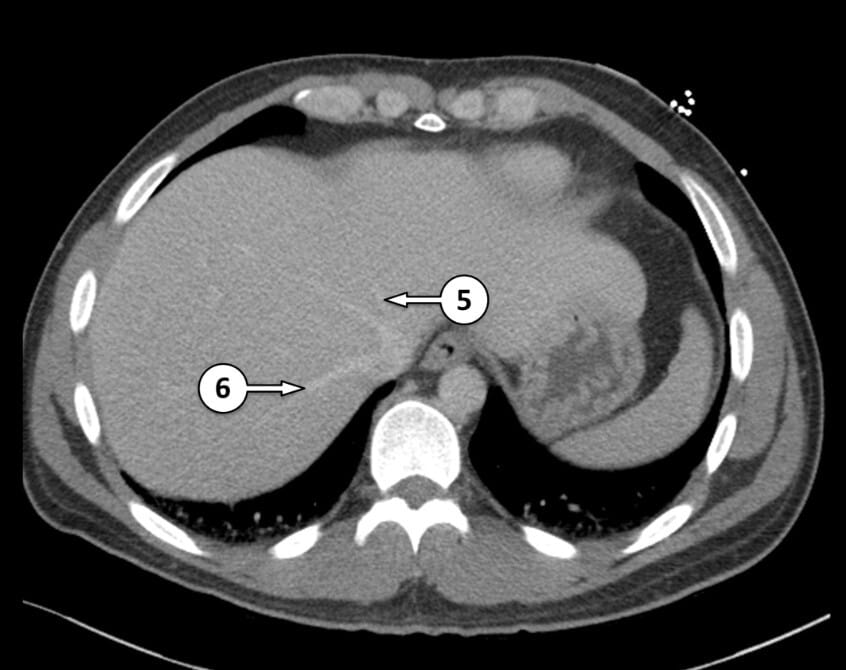

5. left hepatic vein

6. right hepatic vein

7. left hemidiaphragm

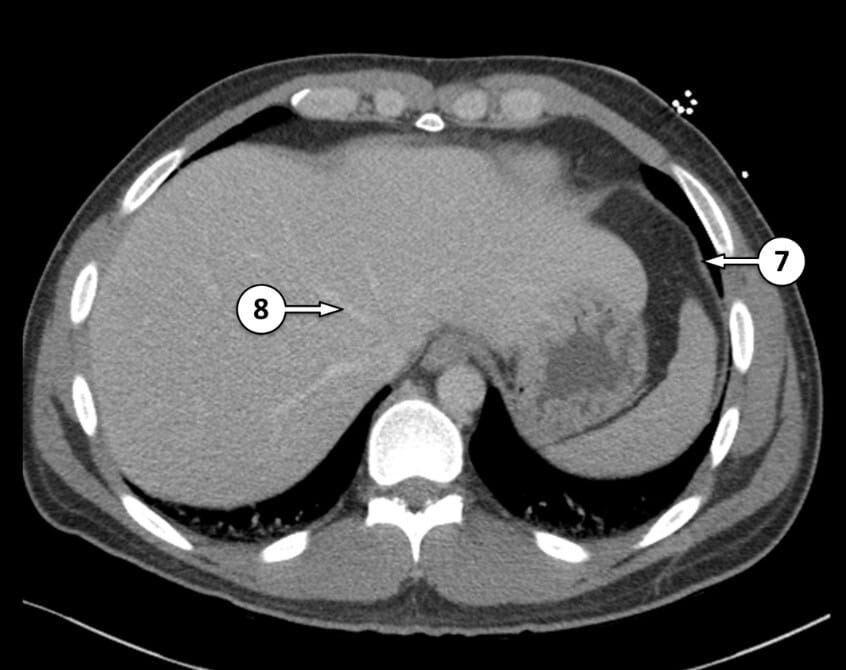

8. middle hepatic vein

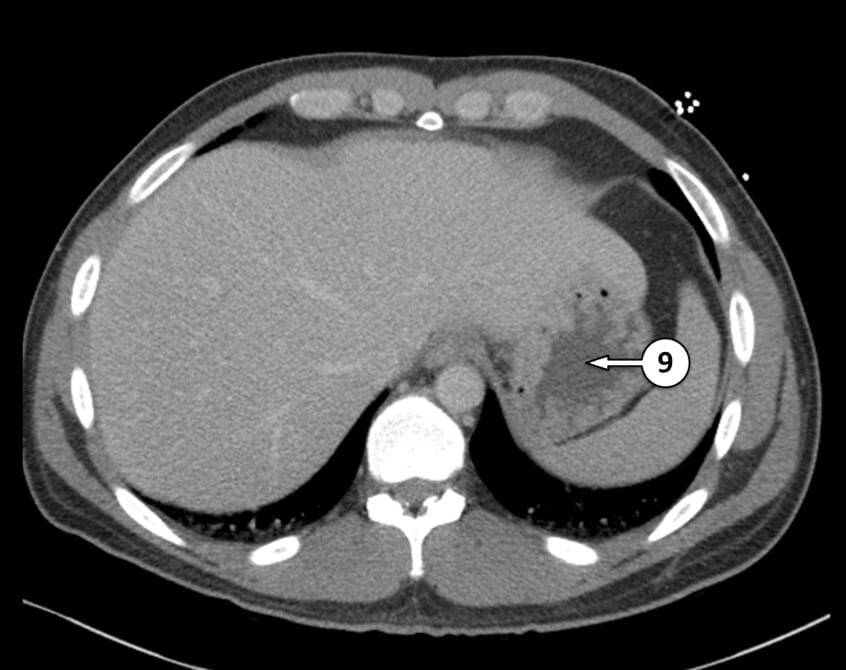

9. gastric fundus

10. segment II of the liver

11. segment IVa of the liver

12. azygos vein

13. gastro-esophageal junction

14. spleen

15. xiphoid process of sternum

16. left portal vein

17. hemiazygos vein

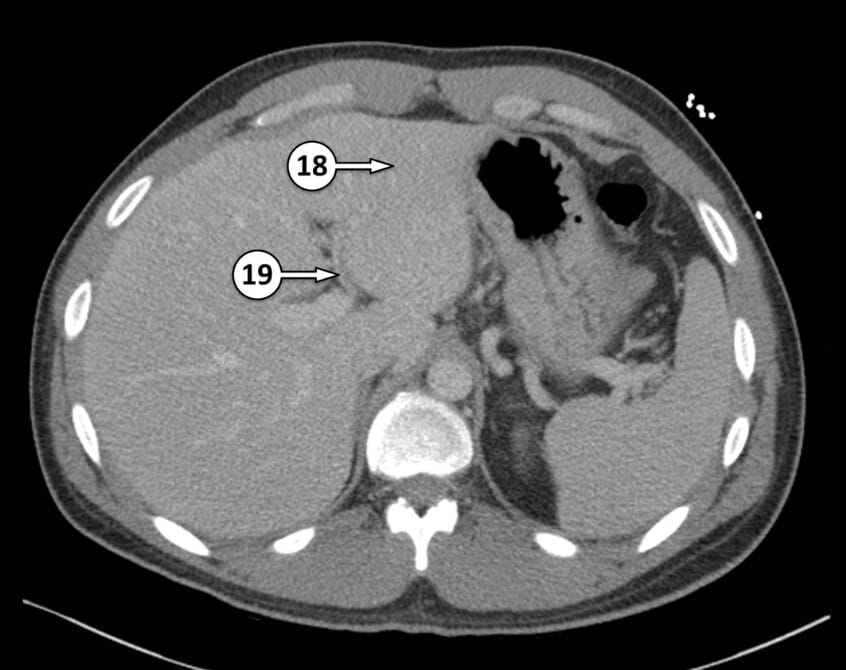

18. segment III of the liver

19. left hepatic artery

20. right portal vein

21. splenic artery

22. segment IVb of the liver

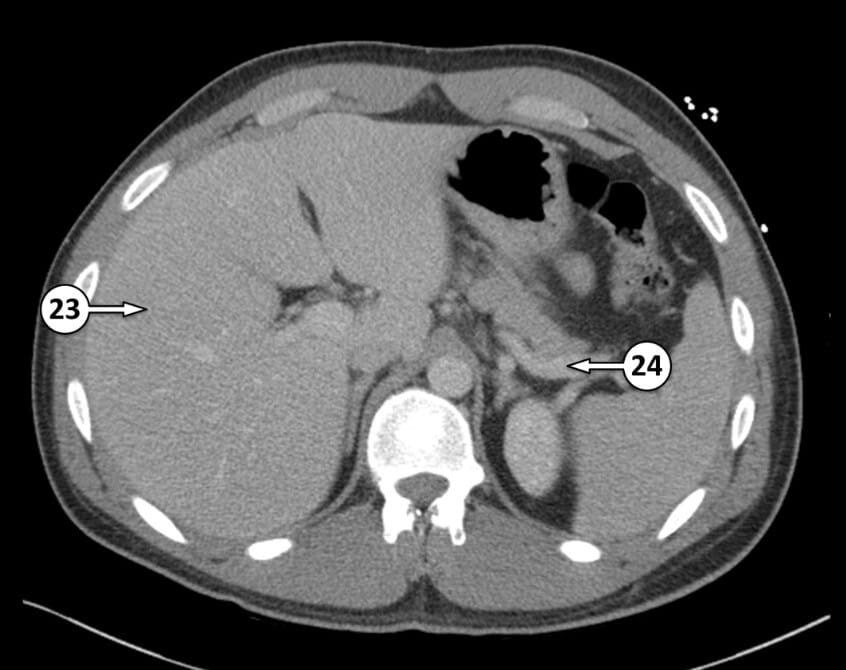

23. segment V of the liver

24. splenic vein

25. common hepatic duct

26. segment VI of the liver

27. splenic flexure

28. left gastric artery

29. right adrenal gland

30. body of the stomach

31. right hepatic artery

32. tail of the pancreas

33. inferior vena cava

34. left adrenal gland

35. common hepatic artery

36. body of the pancreas

37. portal vein

38. falciform ligament

39. ligamentum teres

40. neck of the gallbladder

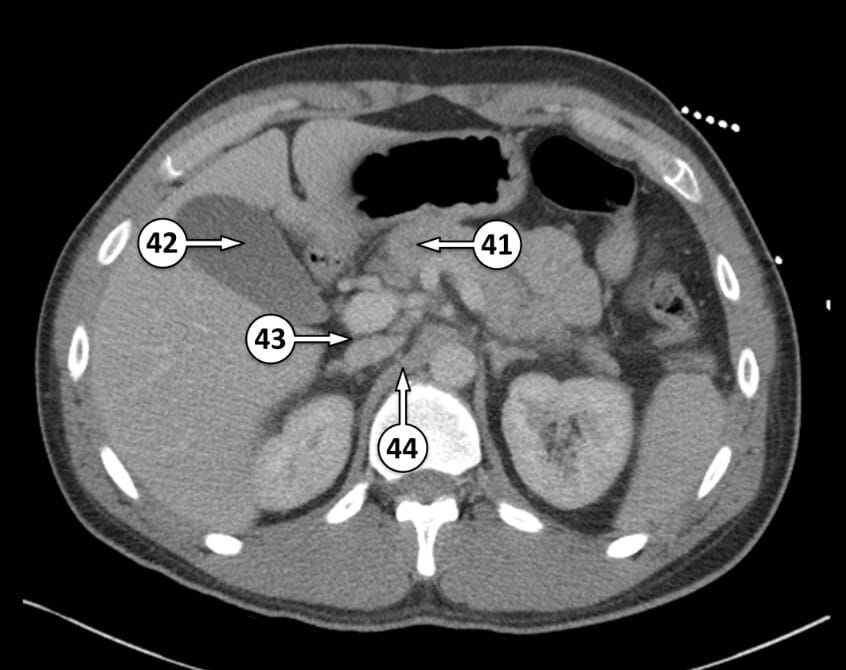

41. main pancreatic duct

42. body of the gallbladder

43. epiploic foramen (of Winslow)

44. right crus of the diaphragm

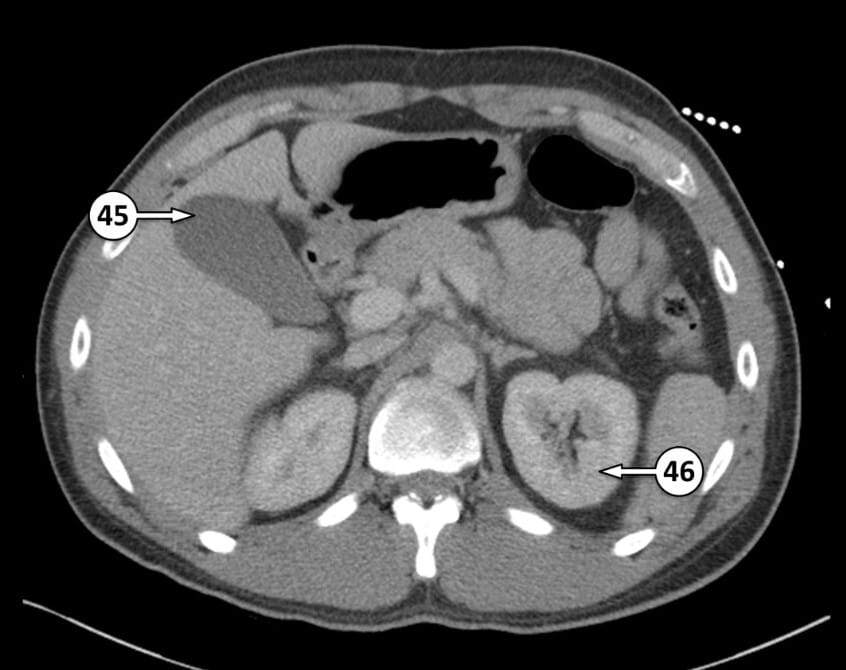

45. fundus of the gallbladder

46. superior pole of the left kidney

47. antrum of the stomach

48. common bile duct

49. gastroduodenal artery

50. first part of the duodenum

51. pylorus

52. celiac trunk

53. abdominal aorta

54. neck of the pancreas

55. renal pyramid

56. jejunum

57. hepatic flexure

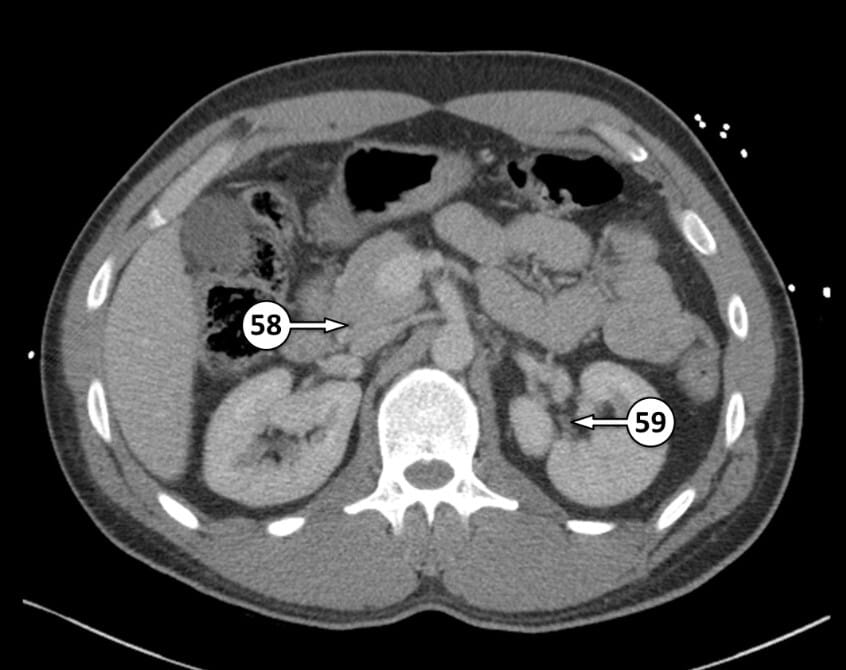

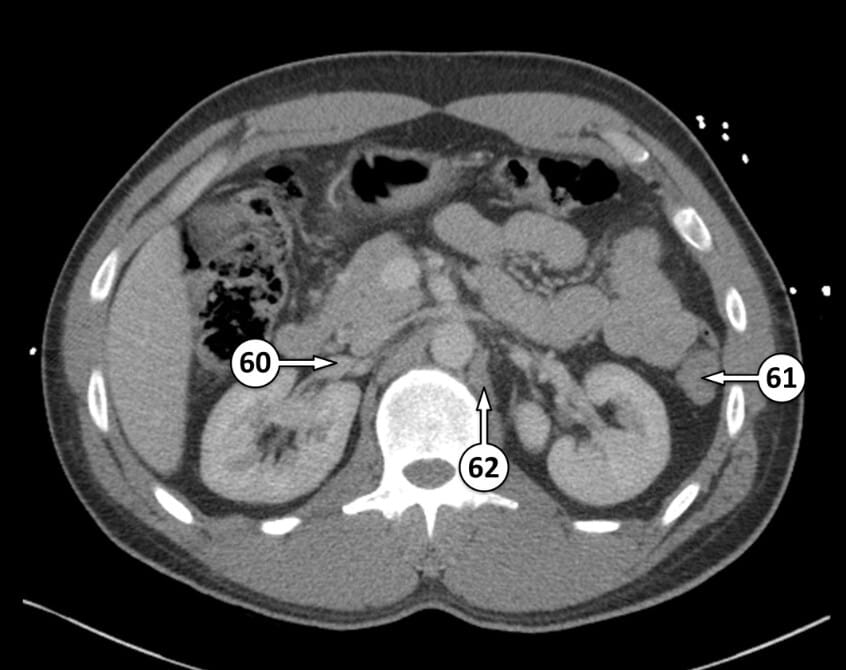

58. intrapancreatic portion of the common bile duct

59. major calyx

60. right renal vein

61. descending colon

62. left crus of the diaphragm

63. head of the pancreas

64. uncinated process of the pancreas

65. fat within the renal sinus

66. right renal artery

67. superior mesenteric artery

68. left renal vein

69. duodenojejunal flexure

70. left renal artery

71. renal pelvis

72. superior mesenteric vein

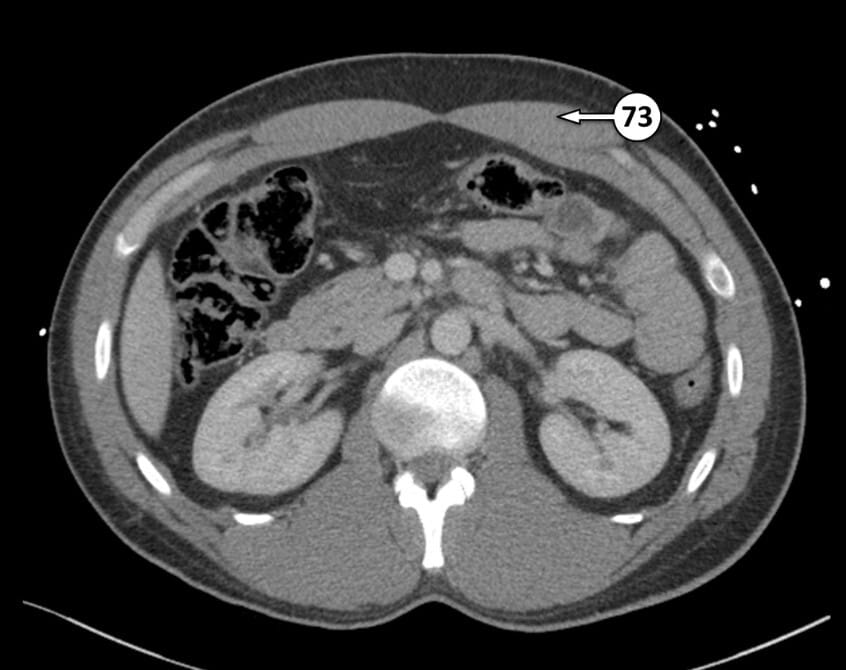

73. rectus abdominis muscle

74. linea alba

75. fourth part of the duodenum

76. pancreaticoduodenal ampulla

77. lumbar vein

78. transverse colon

79. left ureter

80. second part of the duodenum

81. ascending colon

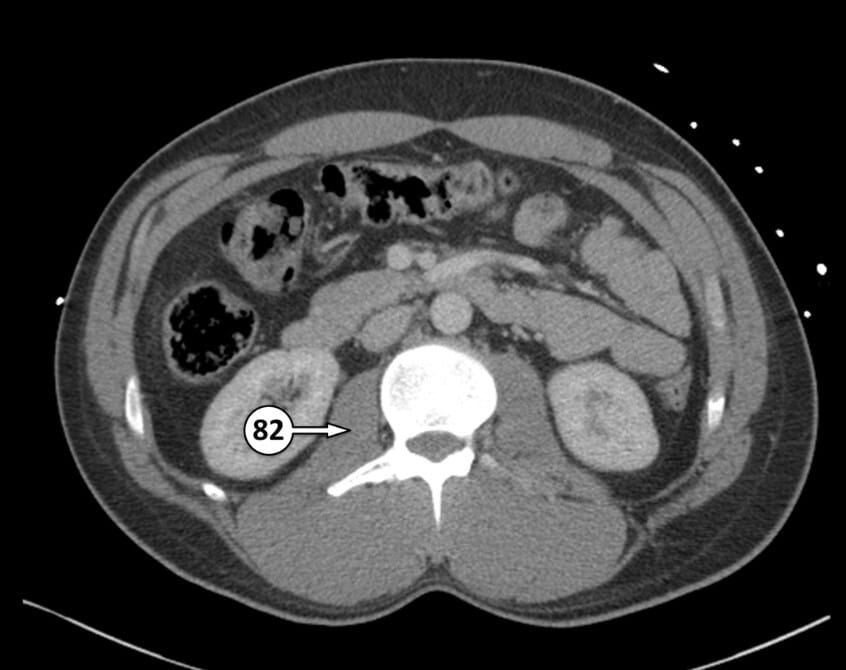

82. psoas major muscle

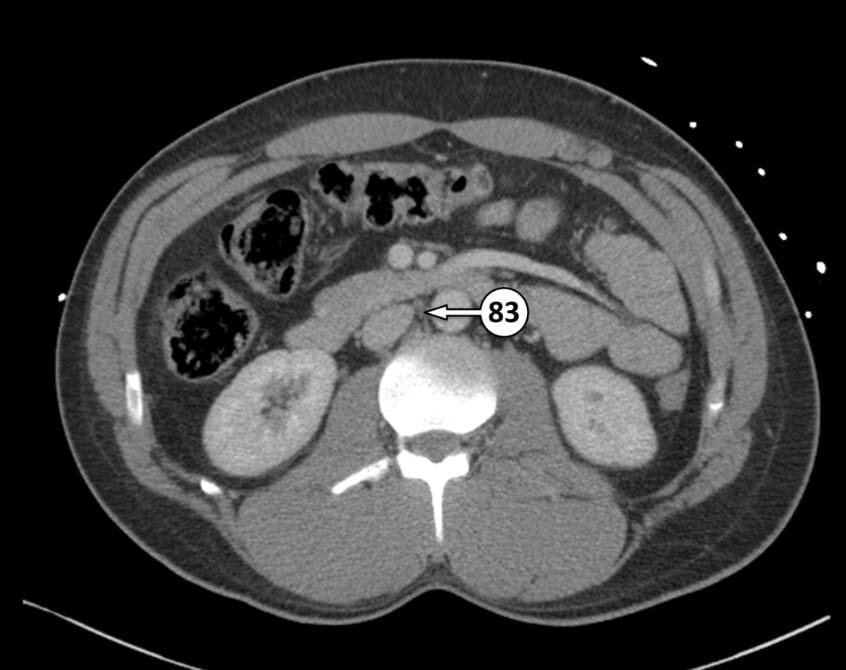

83. cisterna chyli

84. inferior pole of the right kidney

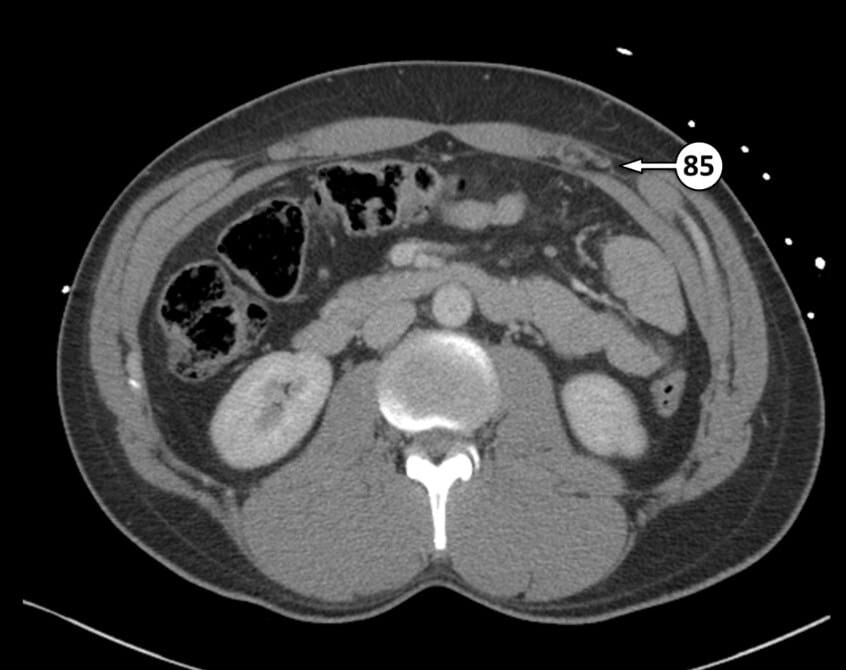

85. linea semilunaris

86. external oblique muscle

87. internal oblique muscle

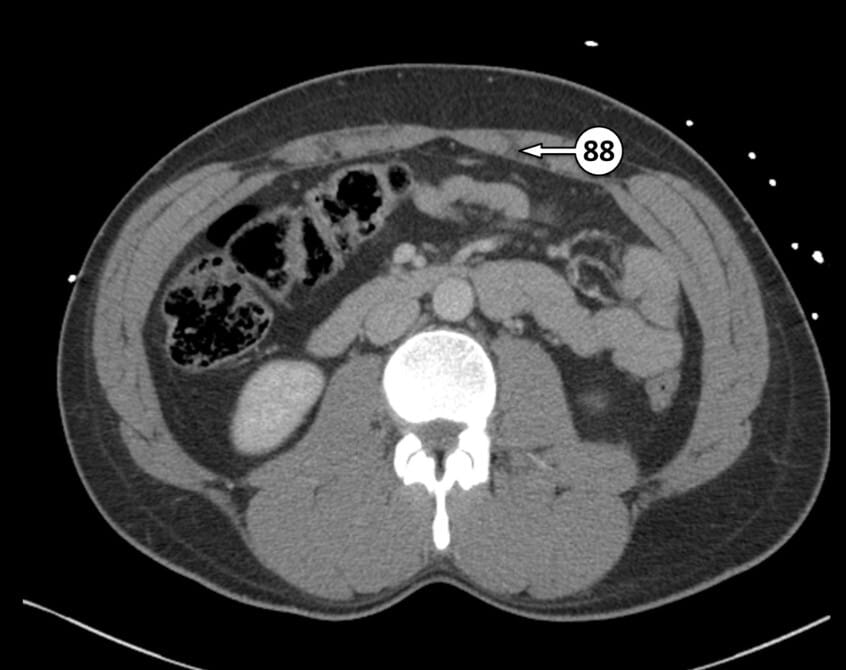

88. tendinous intersection within the rectus abdominis muscle

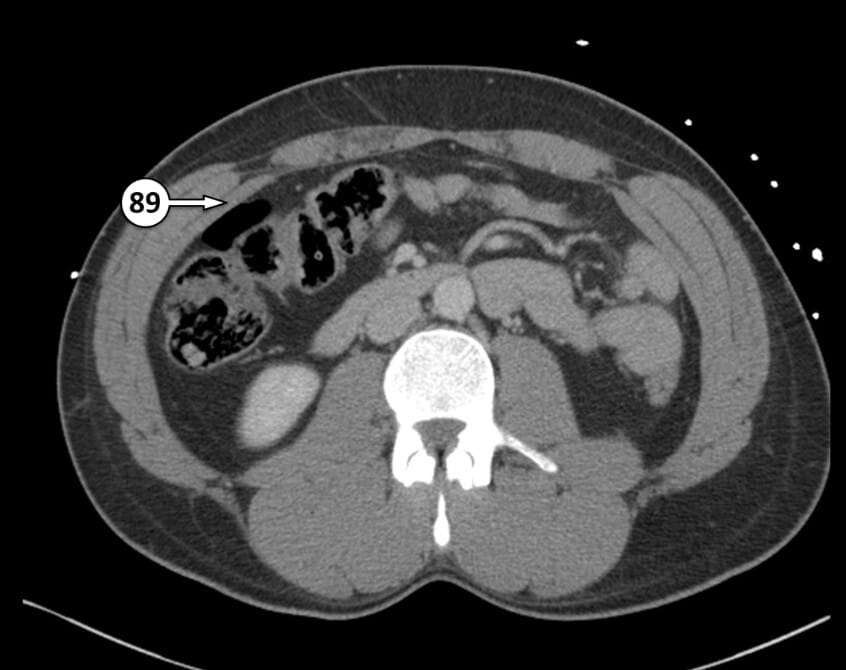

89. transversus abdominis muscle

90. third part of the duodenum

91. inferior mesenteric vein

92. quadratus lumborum muscle

93. inferior mesenteric artery

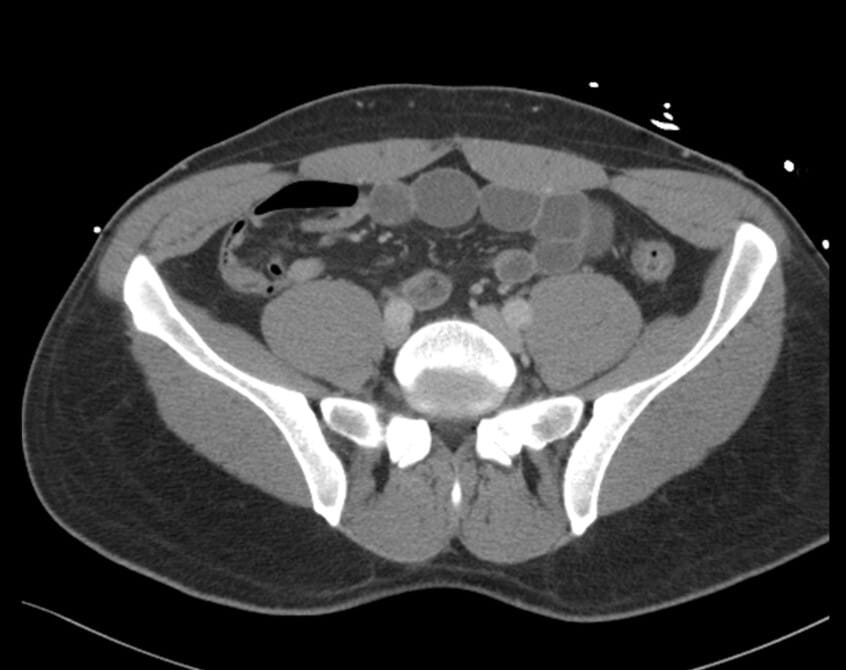

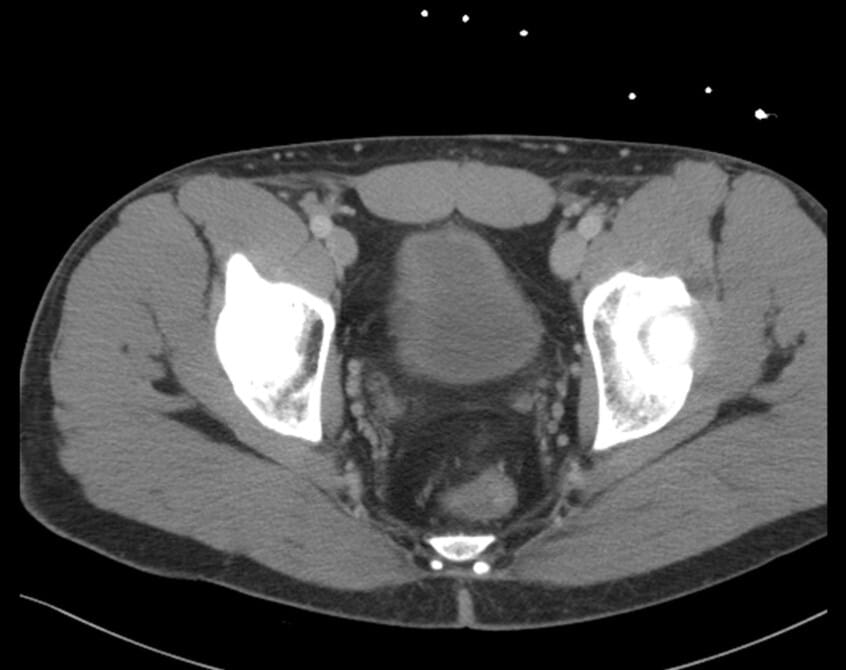

Lower Part

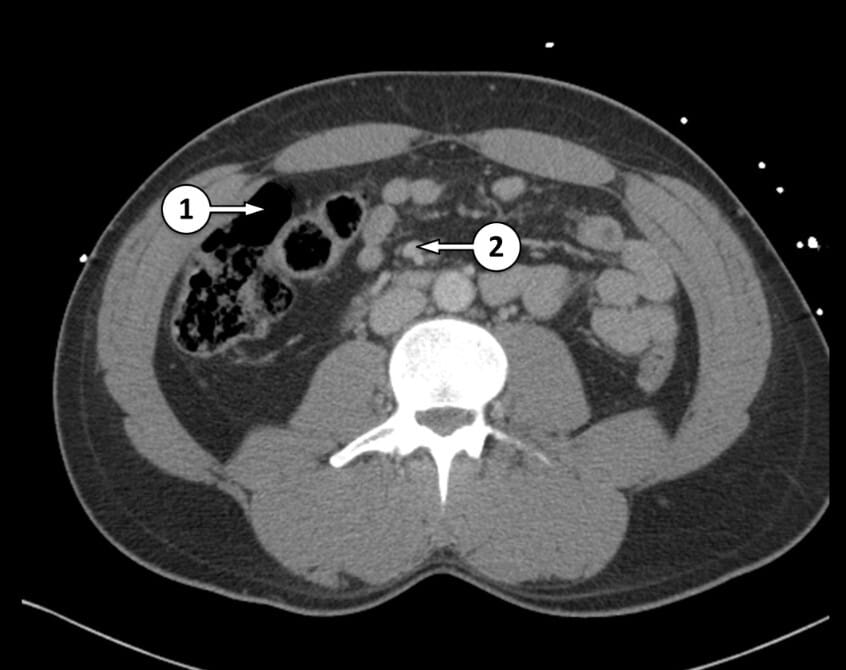

1. ascending colon

2. superior mesenteric vein

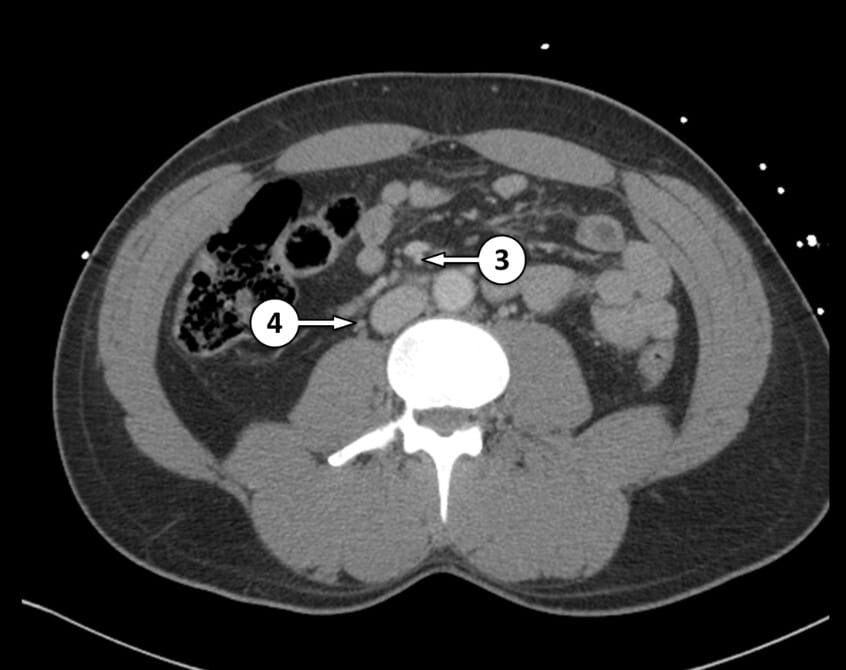

3. superior mesenteric artery

4. gonadal vessels

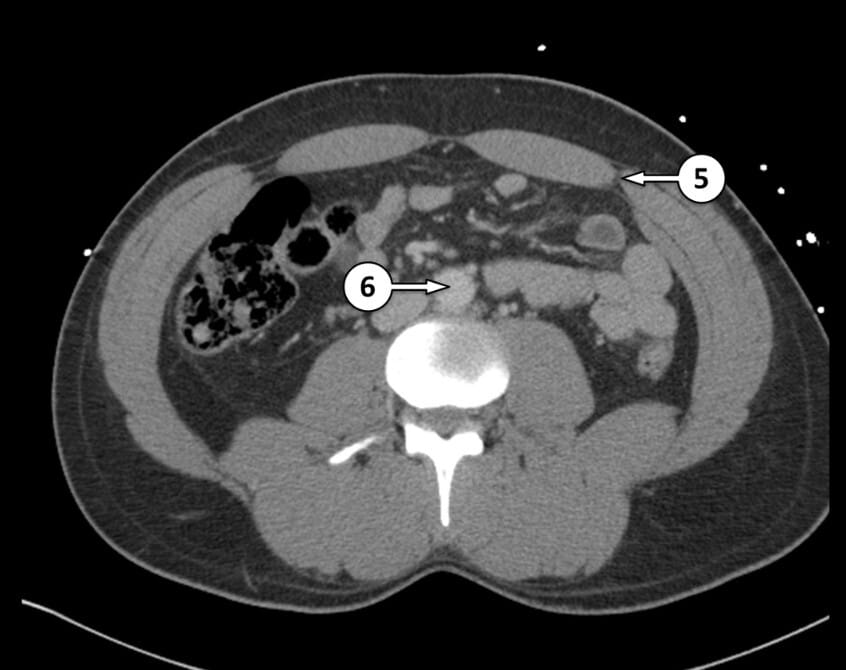

5. linea semilunaris

6. abdominal aorta

7. linea alba

8. inferior vena cava

9. inferior mesenteric artery

10. inferior mesenteric vein

11. lumbar vein

12. jejunum

13. right colic vessels

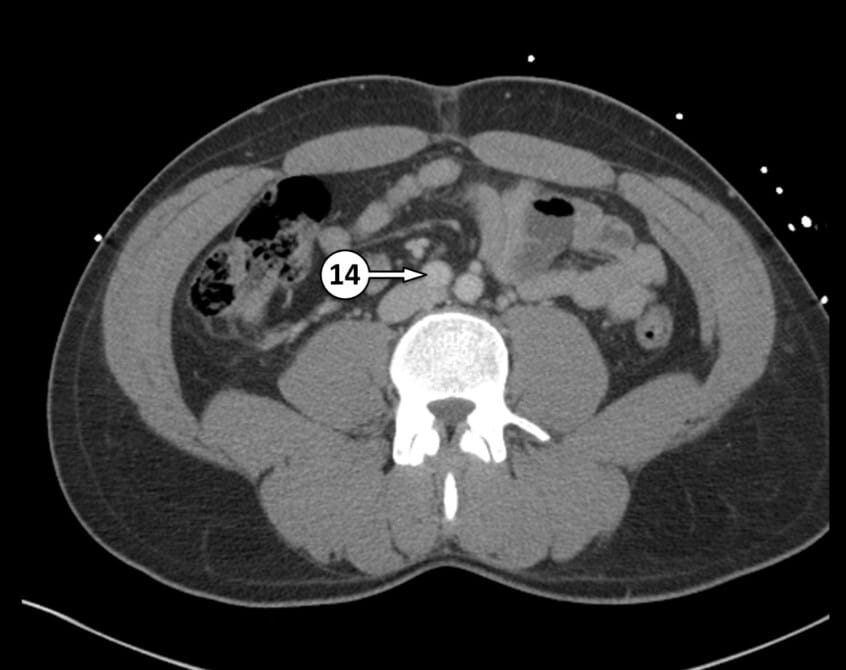

14. right common iliac artery

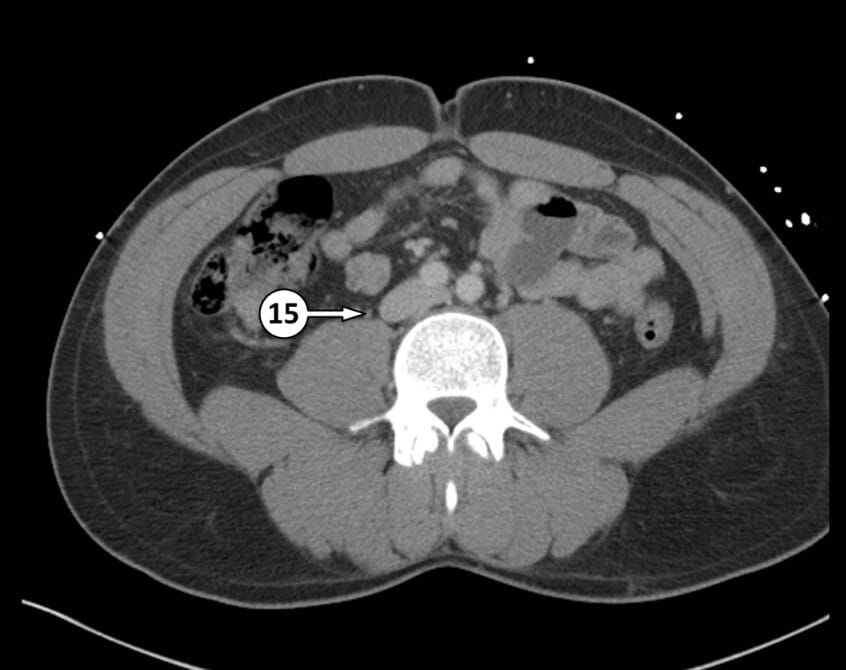

15. abdominal portion of the ureter

16. left colic artery

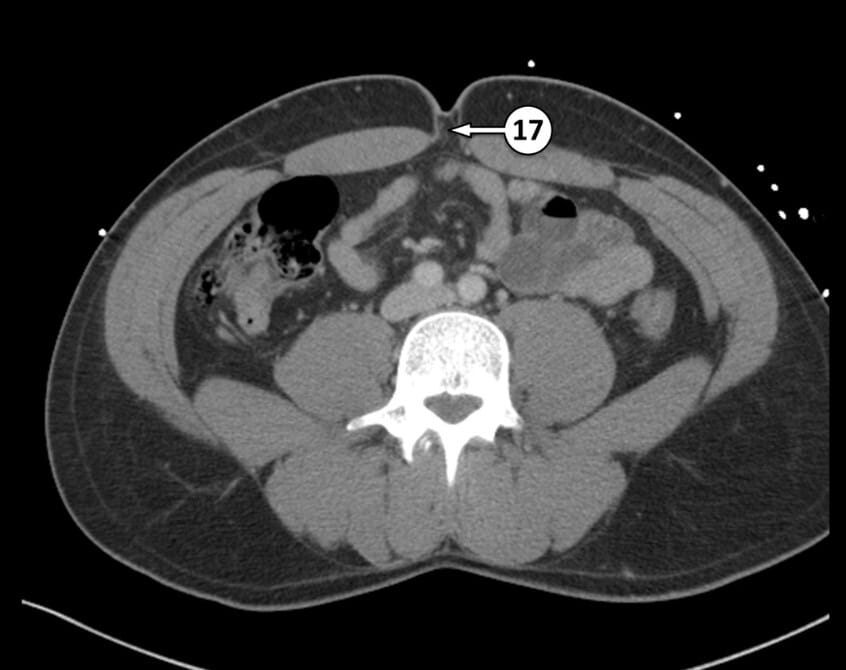

17. umbilicus

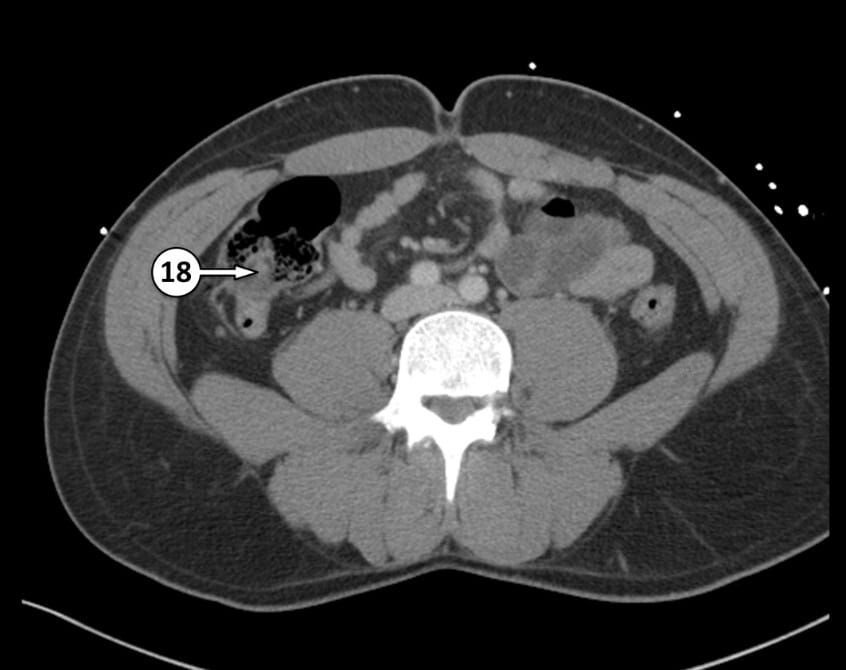

18. ileocecal valve

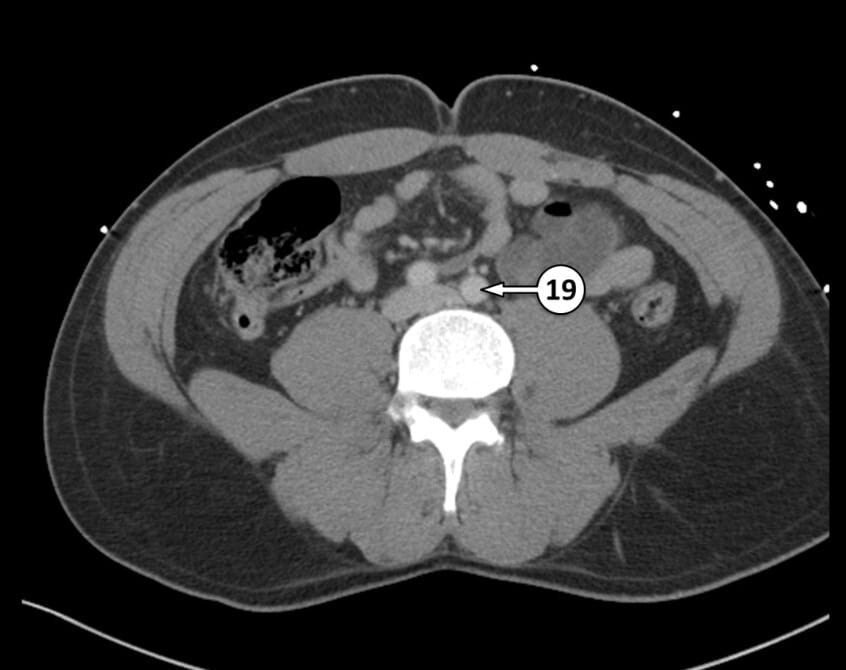

19. left common iliac artery

20. quadratus lumborum muscle

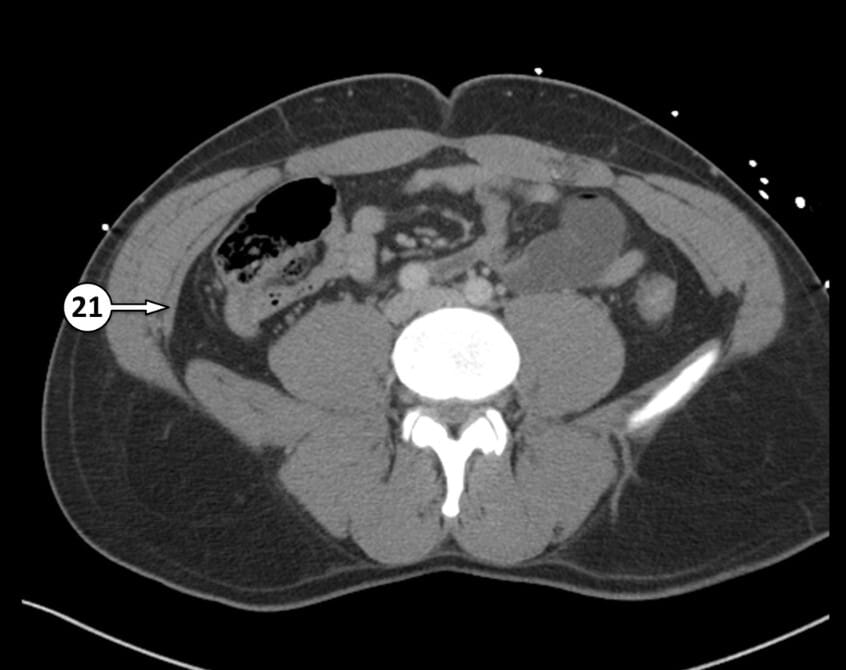

21. transversus abdominis muscle

22. terminal ileum

23. internal oblique muscle

24. right common iliac vein

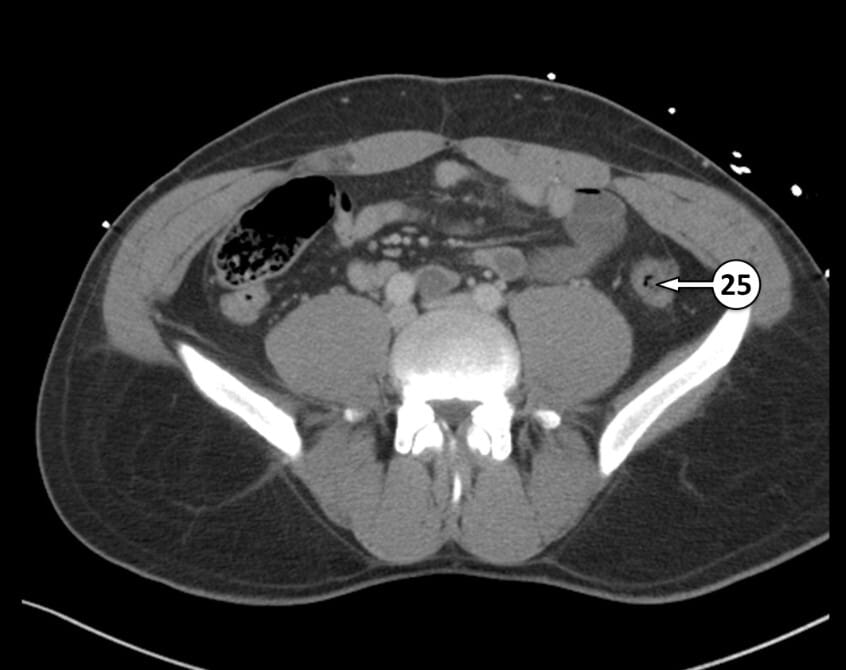

25. descending colon

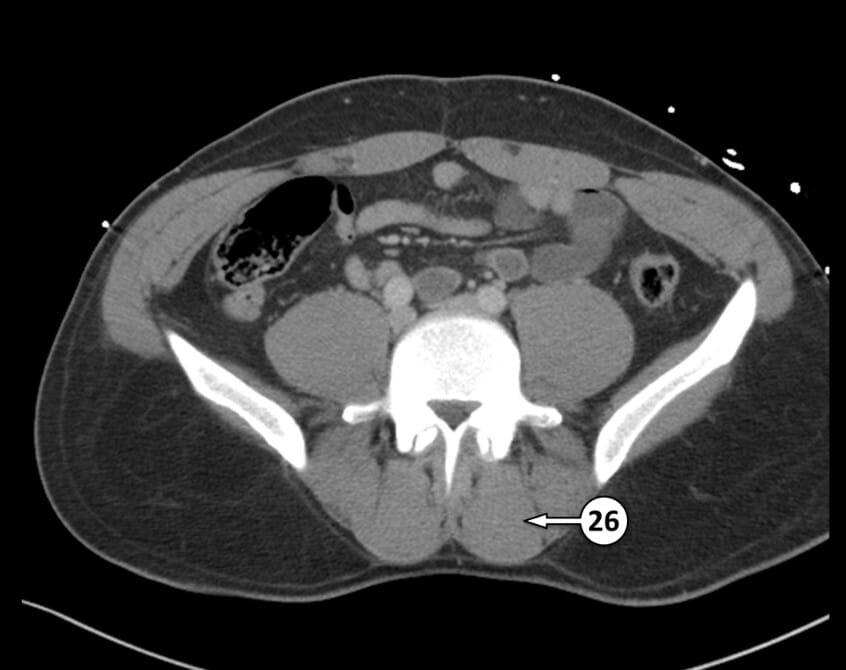

26. erector spinae muscle group

27. cecum

28. external oblique muscle

29. left common iliac vein

30. vermiform appendix

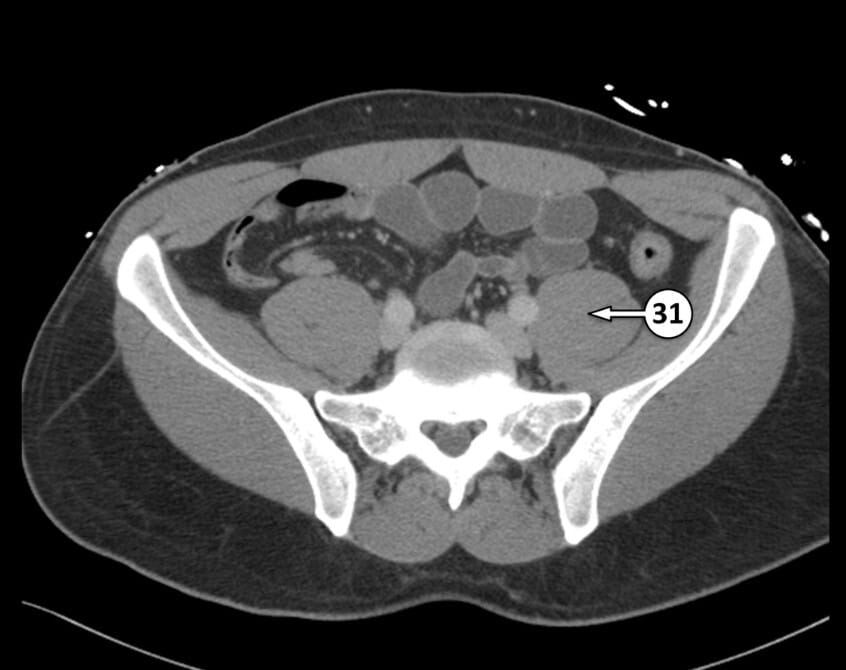

31. psoas major muscle

32. iliacus muscle

33. ileum

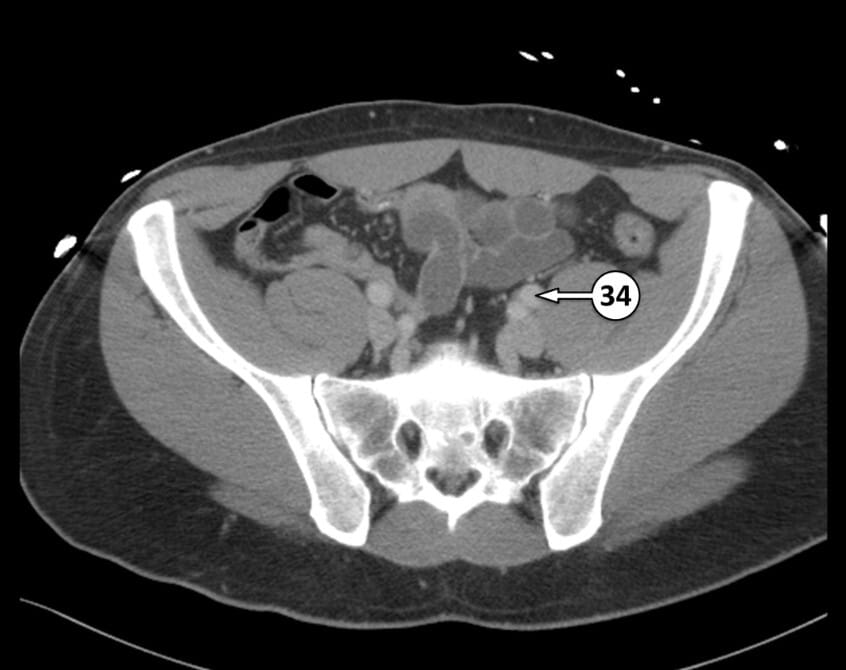

34. left external iliac artery

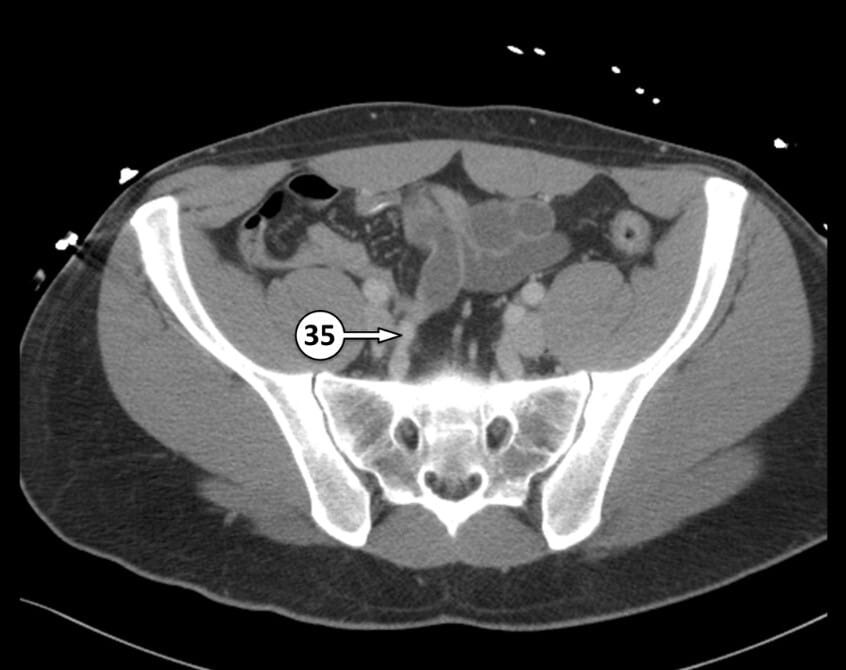

35. right internal iliac artery

36. superior rectal vein

37. superior rectal artery

38. right internal iliac vein

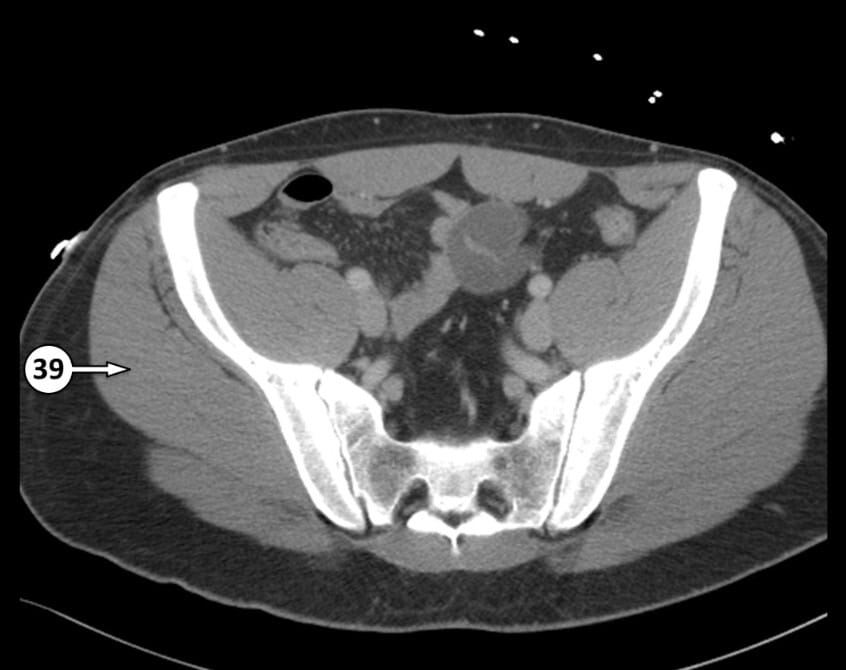

39. gluteus medius muscle

40. left internal iliac vein

41. gluteus minimus muscle

42. pelvic portion of the ureter

43. right external iliac artery

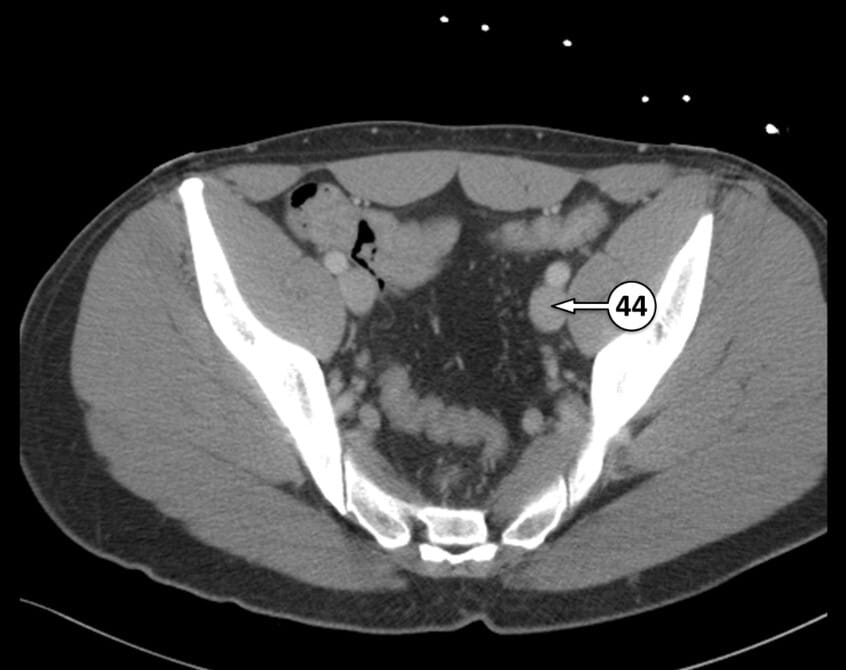

44. left external iliac vein

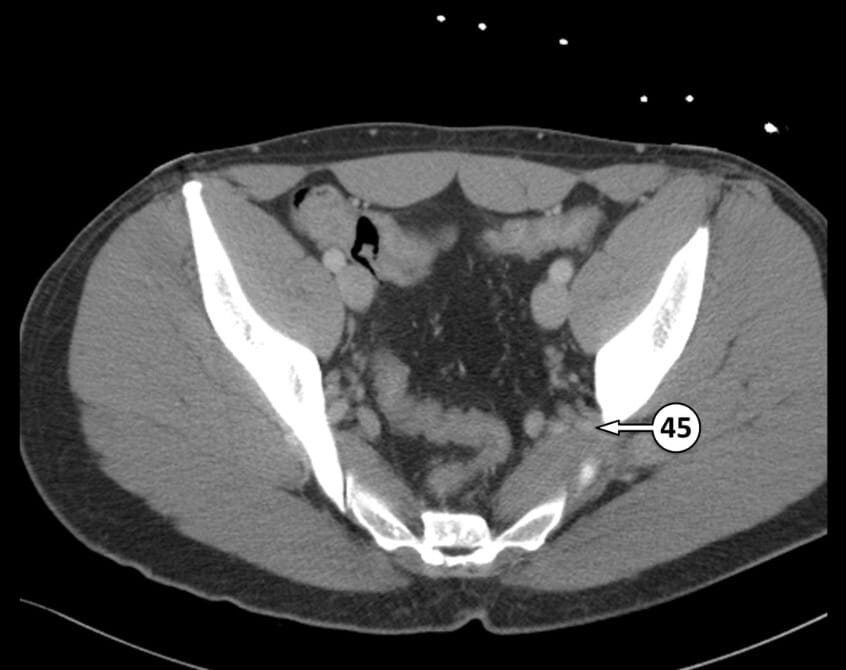

45. superior gluteal vessels

46. rectus abdominis muscle

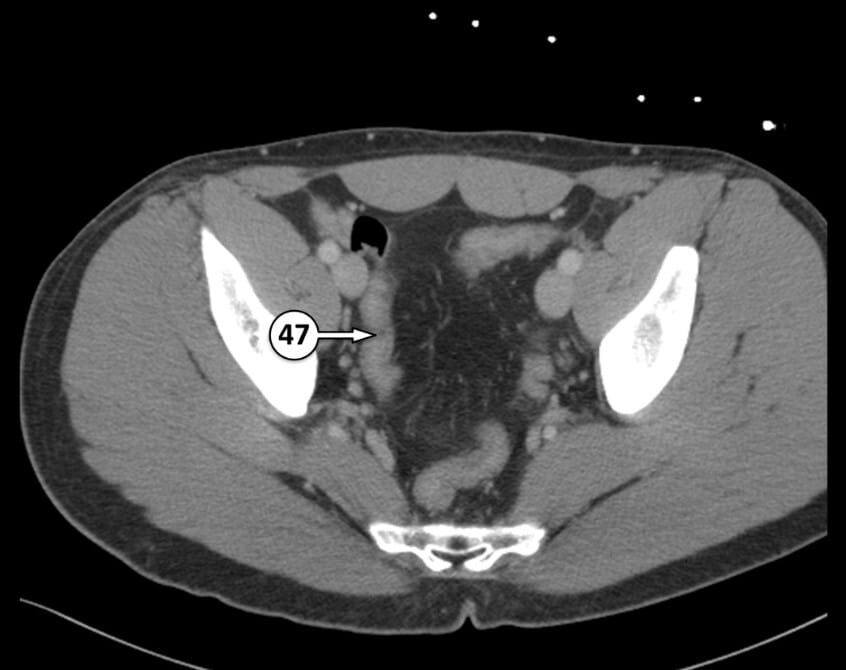

47. sigmoid colon

48. piriformis muscle

49. right external iliac vein

50. inferior epigastric vessels

51. ductus deferens

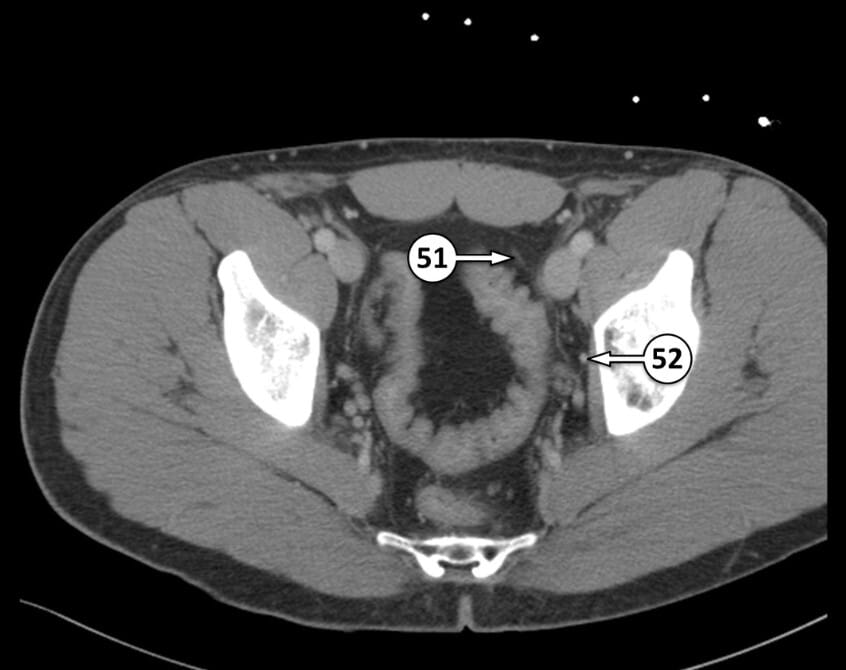

52. obturator artery

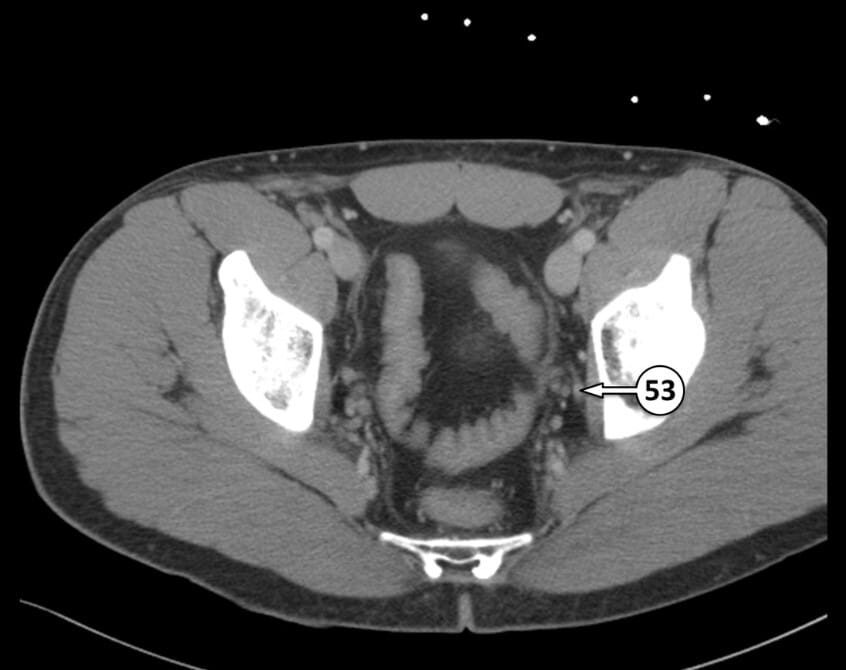

53. obturator vein

54. urachus

55. obliterated umbilical artery

56. anterior inferior iliac spine

57. inferior gluteal vessels

58. vesiculoureteric junction

59. seminal vesicle

60. mesorectal fat

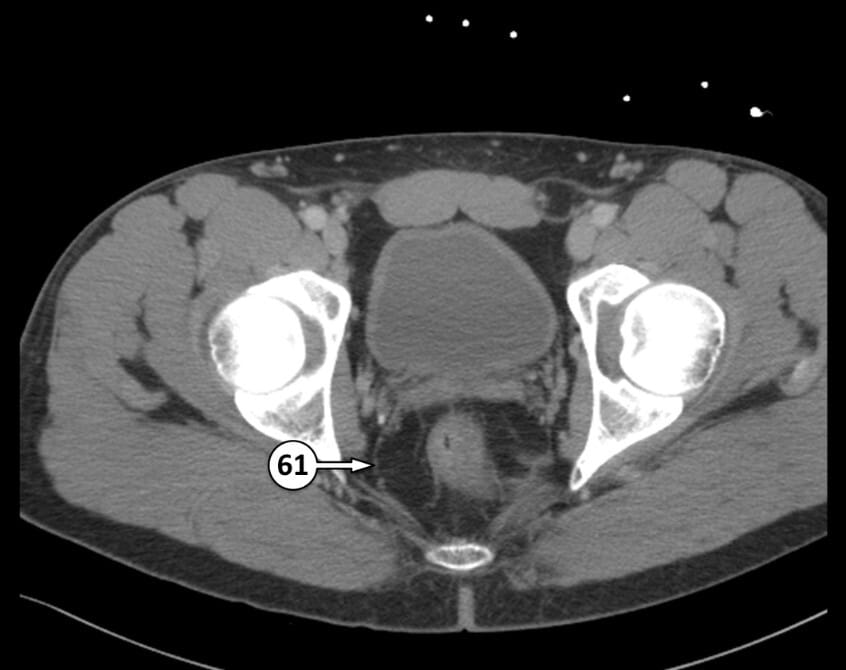

61. mesorectal fascia

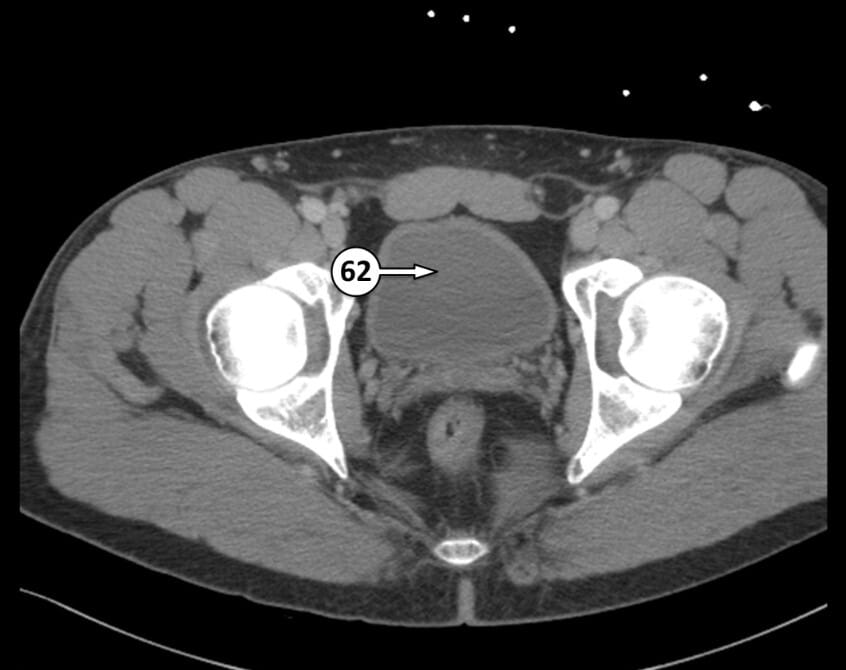

62. urinary bladder

63. internal pudendal vessels

64. retropubic space (of Retzius)

65. inferior vesicular vessels

66. internal obturator muscle

67. fat within the inguinal canal

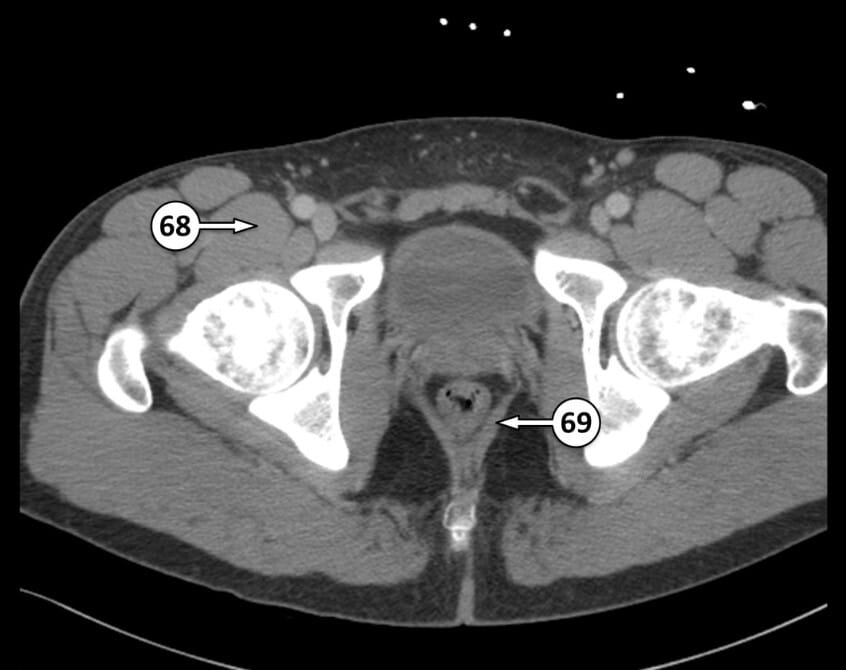

68. iliopsoas muscle

69. levator ani muscle

70. rectus femoris muscle

71. tensor fascia lata muscle

72. pectineus muscle

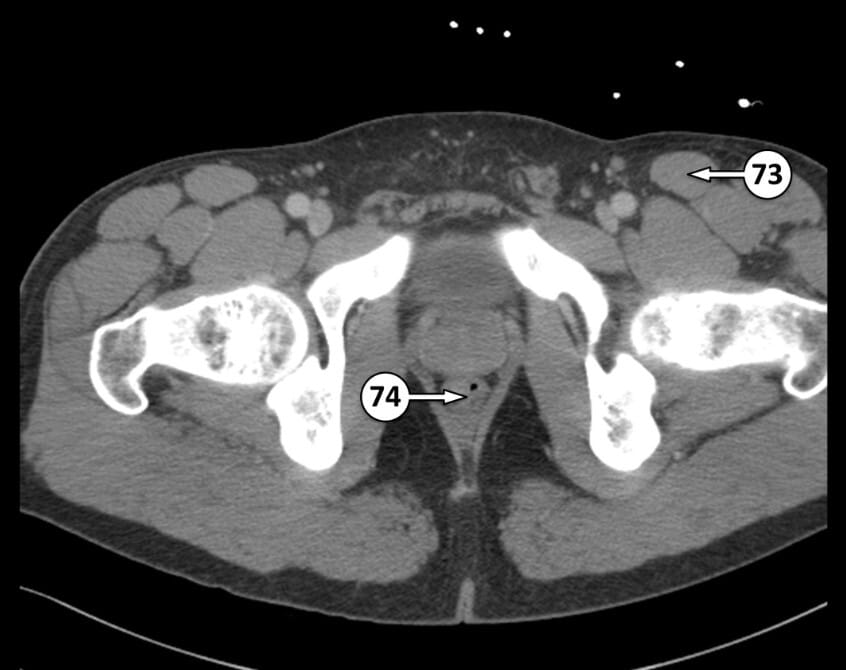

73. sartorius muscle

74. rectum

75. obturator canal

76. gluteus maximus muscle

77. prostate gland

78. inferior rectal artery

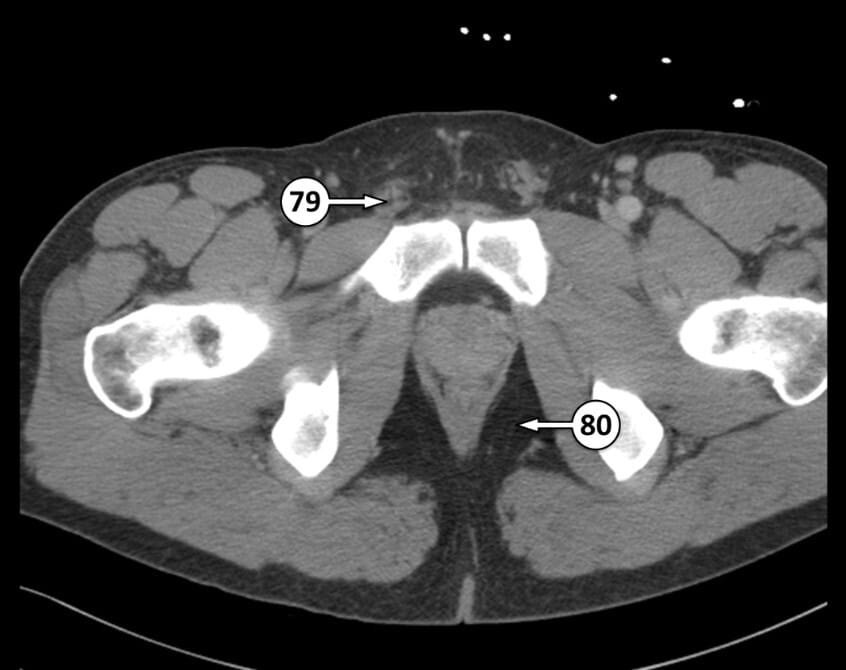

79. spermatic cord

80. ischioanal fossa

81. right common femoral vein

82. iliopsoas tendon

83. sciatic nerve

84. suspensory ligament of the penis

85. left common femoral artery

86. external obturator muscle
